XSD-A9 TPMS Programming Tool
For MT-X1 / MT-X2 programmable sensors, A9 programming tools, sample testing, workshop service and bulk project review.
Core specifications
Before submitting project details, confirm OE, frequency, vehicle fitment and sample or batch requirements. XSD engineering reviews fitment before quotation.
Prepare project details
- Vehicle model, year and market
- Target OE reference and frequency
- Sample quantity or batch demand
A9 tool project opens the service workflow routeThe contact page will ask for tool quantity, bundled sensors, service network type, software language and delivery requirements.
Product details
Product images, function notes and technical specifications are rendered from the controlled product database.

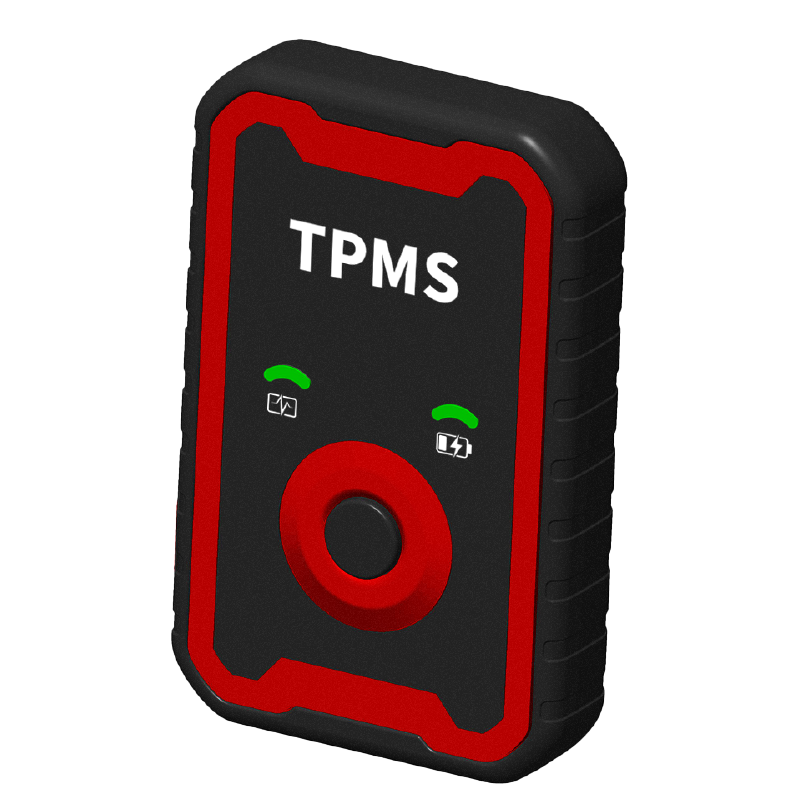

XSD-A9 TPMS Bluetooth Programming Tool
XSD-A9 is a Bluetooth TPMS programming tool used together with a mobile App. It supports sensor activation, reading, ID copy, programming, relearn and diagnostic confirmation for tire shops, service networks and distributors.

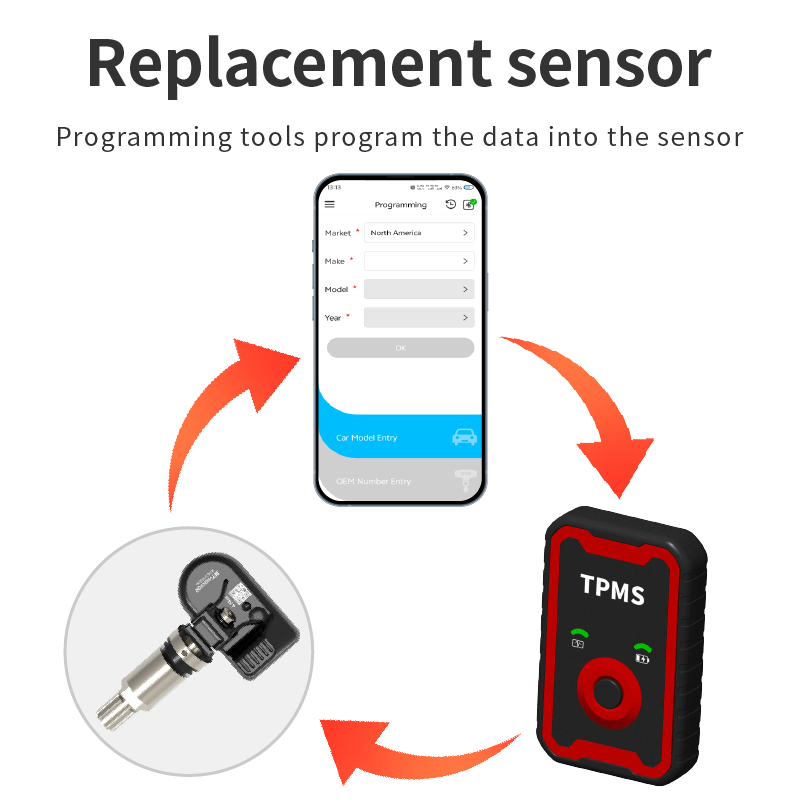

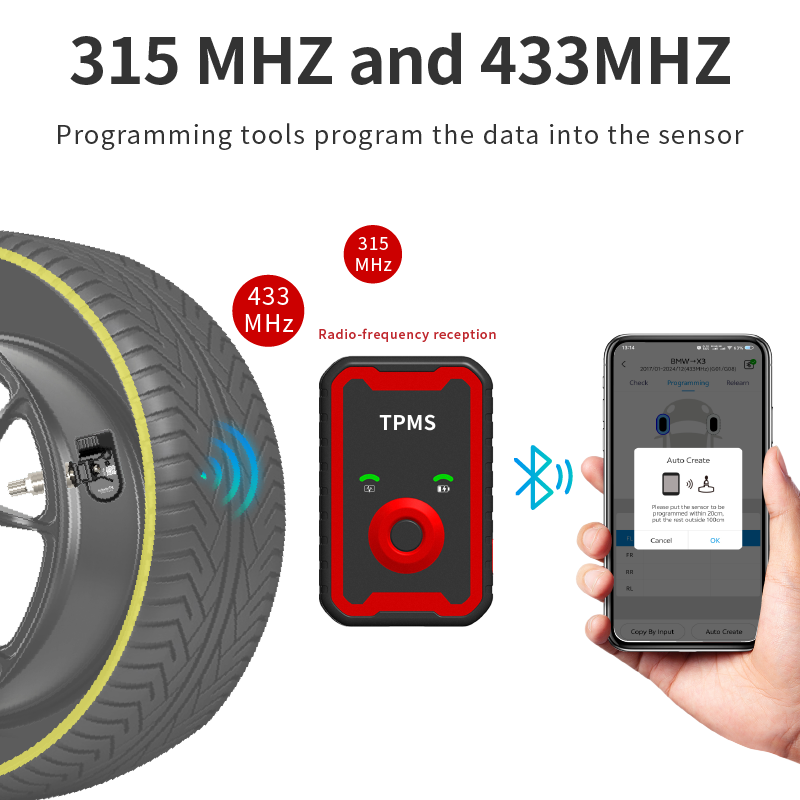

The phone App connects to the A9 tool by BLE, then guides vehicle selection, OE route selection, programming steps, result messages and software or vehicle-database updates. The tool handles close-range sensor communication and triggering while the App manages the service workflow.

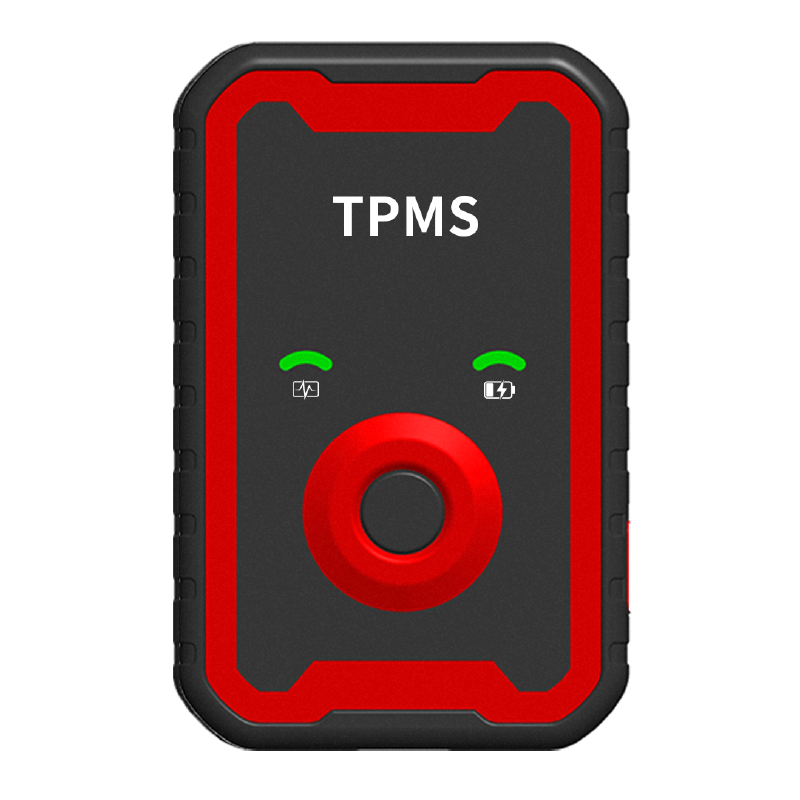

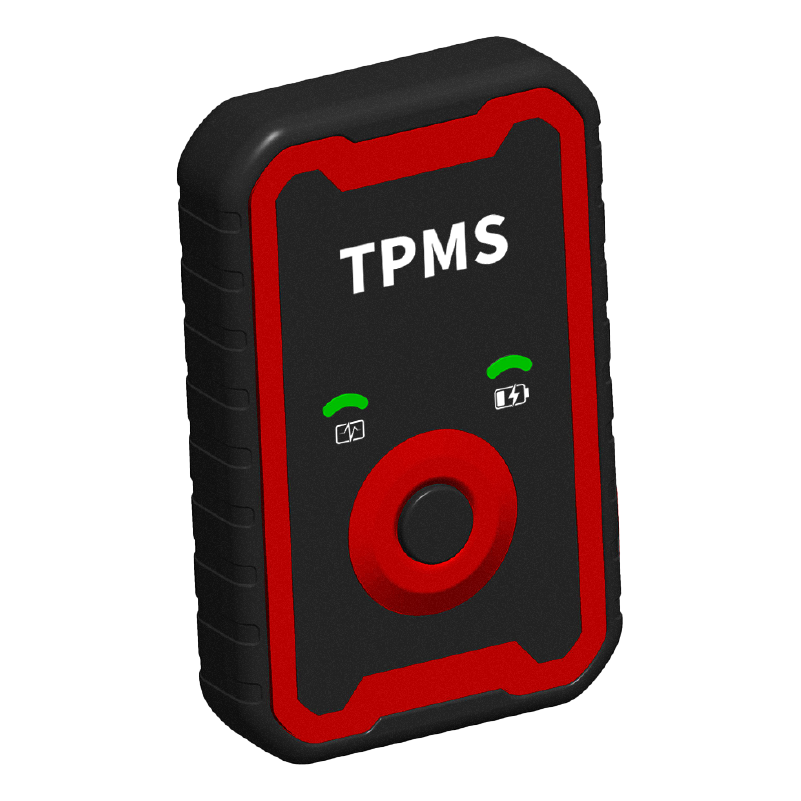

Programming tool images

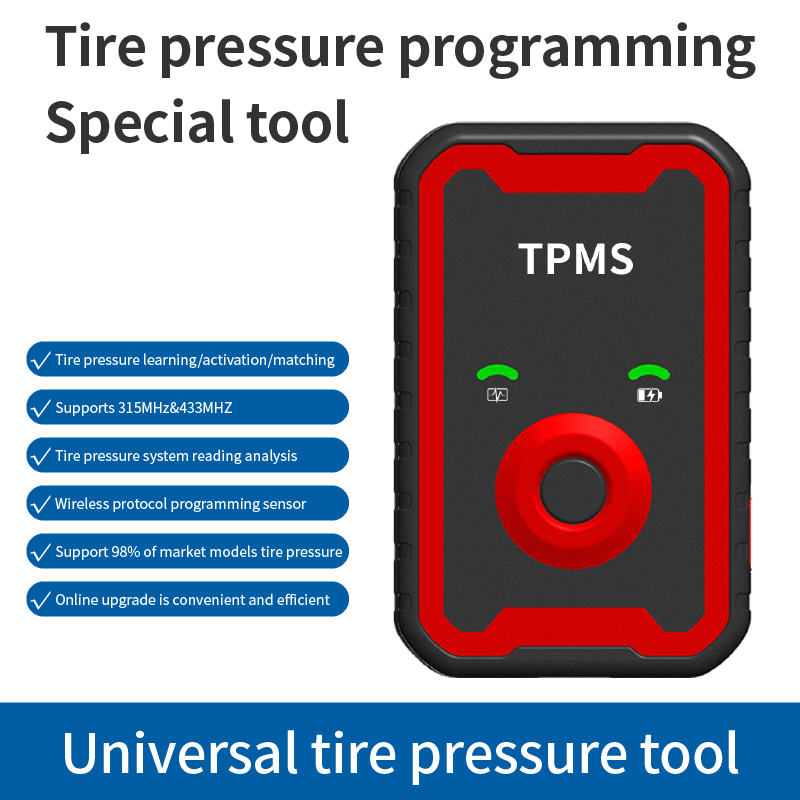

TPMS service functions
- Connect the A9 tool through the Android or iOS mobile App.
- Select vehicle application, OE route or sensor route in the App.
- Activate and read known TPMS sensors.

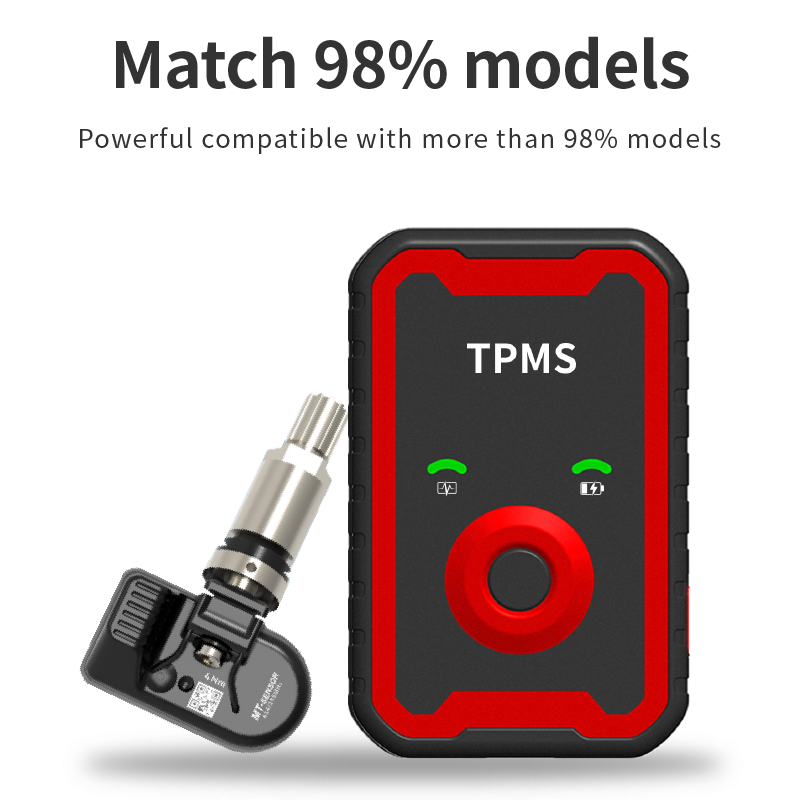

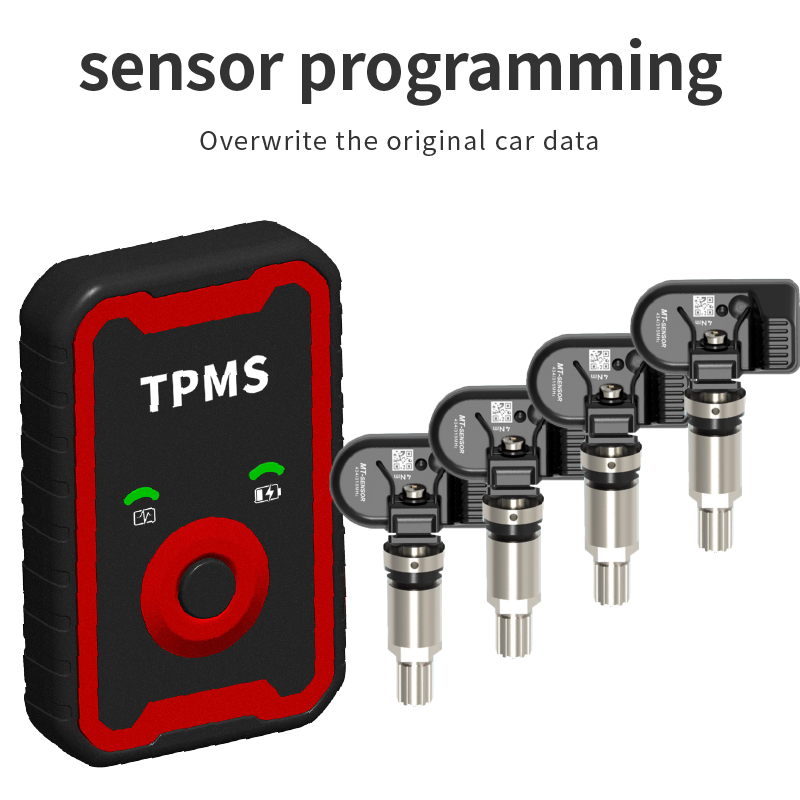

- Program compatible sensors for OE replacement service.
- Copy sensor ID to improve workshop service efficiency.
- Use App-side software and vehicle database updates for ongoing support.

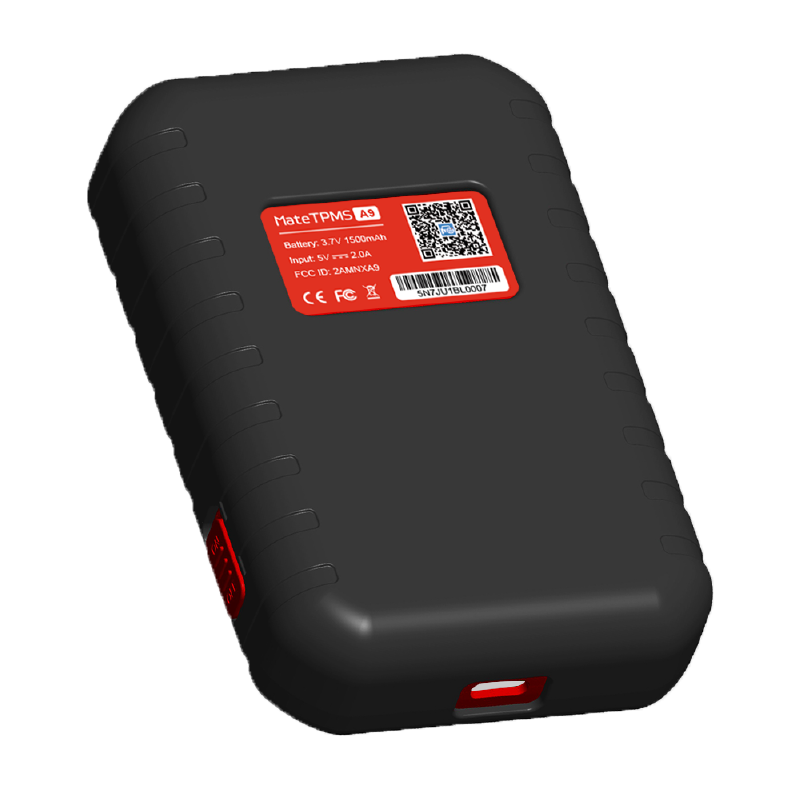

Technical specifications
- Model: XSD-A9
- Connection: BLE / Bluetooth, used with mobile App
- Mobile operating system: Android / iOS App support; minimum OS version follows the current App release notes
- Net weight: 130g
- Operating temperature: -20°C to 70°C
- Storage temperature: -30°C to 85°C
- Dimensions (L*W*H): 110*70*25mm
Related Engineering Resources
XSD Precision connects product catalog evidence, programming protocol guidance, OE fitment logic and service-validation resources so customers can clarify technical boundaries before selection, sample testing or batch projects.
FSK / ASK modulation differenceUnderstand how TPMS RF modulation affects sensor programming and vehicle reception.Manchester / PWM / NRZ encodingReview mainstream TPMS protocol encoding methods and vehicle-protocol fitment boundaries.ASK / FSK auto matchingReview frequency, modulation, bit rate, data frame and checksum logic to reduce wrong programming risk.TPMS OE cross-referenceConnect OE number, vehicle, frequency, activation/read result and relearn evidence into fitment review inputs.Programming and relearn failure isolationIsolate service issues by programming, activation, readback and vehicle relearn evidence.
Need a tool and sensor bundle?
A9 can be quoted as tool-only or with MT-X programmable sensors for starter kits, workshop kits and distributor launch packages.
