Problem Description

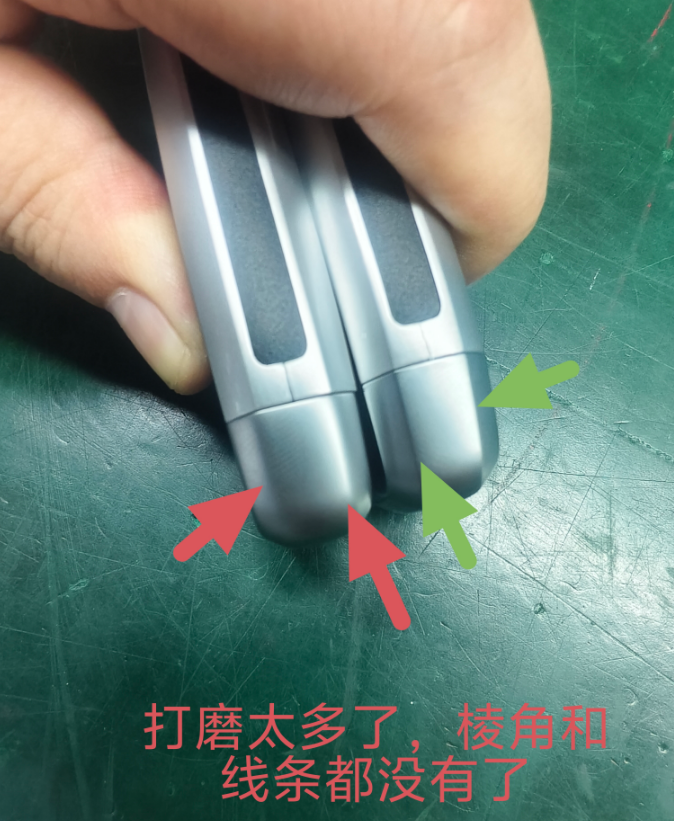

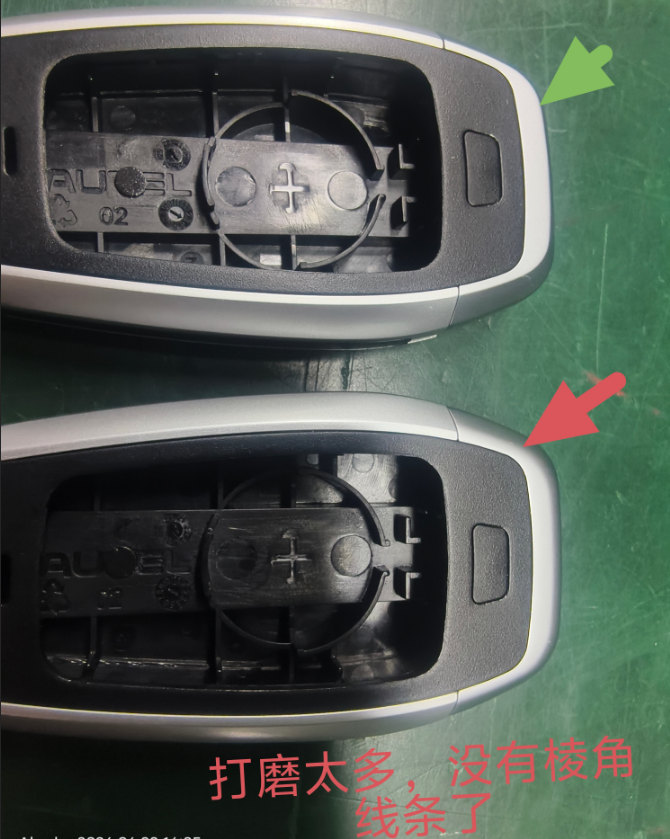

The defect shown in the production photos is typical over-polishing: the operator removes too much material around the edge and contour area. The original crisp edge, step line or parting-line visual reference becomes rounded and unclear.
For decorative zinc die cast parts, polishing is not only a surface cleaning process. It directly affects product geometry, edge definition and customer-perceived quality.
Why Over-Polishing Happens
| Cause | What Happens | Quality Risk |
|---|---|---|
| Casting defect covered by polishing | Flow marks, parting flash, dents or carbon marks are removed by grinding instead of solving the upstream cause | Edges and lines are consumed while the real casting problem remains |
| No limit sample | Operators judge by experience without a clear OK/NG boundary | Different workers create different edge shapes |
| Wrong abrasive tool | Coarse belt, hard wheel or high-speed hand tool removes material too quickly | Local flat spots, rounded corners and uneven gloss appear |
| Uncontrolled pressure and time | Polishing force and contact time are not standardized | Good parts become NG parts during finishing |
| No protected edge design | Critical edge or decorative line has no fixture protection | Feature line disappears after repeated polishing |
How to Judge the Defect
Control Plan
- Create OK, warning and NG limit samples for edge definition, contour line and surface gloss.
- Define no-polish or light-polish protected zones around decorative edges, parting lines and assembly references.
- Replace free-hand heavy grinding with fixture-guided polishing where the edge must be preserved.
- Use finer abrasive sequence and reduce single-step material removal instead of one aggressive grinding operation.
- Record abrasive type, tool speed, contact pressure and polishing time for production repeatability.
- Fix upstream casting causes such as flash, flow mark, shrinkage or carbon mark instead of relying on polishing to hide them.
Engineering Recommendation
| Stage | Required Action | Acceptance Evidence |
|---|---|---|
| Mold trial | Confirm whether the edge and parting line are already clean before polishing | Trial samples and cavity-separated photos |
| Polishing setup | Lock abrasive grade, fixture, motion direction and maximum polishing time | Process instruction and operator training record |
| First article | Compare with limit sample before batch production | Approved first article photos and measurement data |
| Mass production | Inspect contour line, edge radius, mating gap and appearance consistency | Sampling record and defect Pareto |
Conclusion: over-polishing is a process-control failure. The right solution is to reduce upstream defects, protect critical edges, define limit samples and control polishing parameters. Do not use grinding as an unlimited repair method.
